Six Processes.
One Roof.
Zero Subcontracting.
Every CANEX product is made entirely in-house — from the first die simulation to the last mile of delivery. Six tightly controlled stages. Full traceability. No handoffs.
01
Die Making
Every extrusion and casting die at CANEX is designed and manufactured entirely in-house. We use advanced simulation software to validate die geometry before a single chip of steel is cut — eliminating costly revisions and accelerating your time to production.
Our die making department is equipped with CNC milling, CNC turning, EDM (Electrical Discharge Machining), and wire cutting — achieving dimensional precision down to 0.001 mm.
Technical Specifications
| Precision | Up to 0.001 mm dimensional tolerance |
| Equipment | CNC milling, CNC turning, EDM, wire cutting |
| Furnace 1 | Radiation heating — up to 1,100 °C — capacity 2,500 kg |
| Furnace 2 | Forced convection — up to 850 °C — capacity 1,400 kg |
| Software | Advanced die simulation before manufacturing |
| Die Types | Extrusion dies (solid, hollow, semi-hollow) & casting dies (GC, LPDC) |
02
Depending on your product geometry, CANEX offers two distinct manufacturing routes — aluminum extrusion for long profiles, or die casting for complex three-dimensional shapes. Both use in-house dies and are supported by the same downstream machining, finishing, and delivery processes.
CANEX produces aluminum extrusion profiles for a wide range of industries and applications, across a broad range of alloy families.
Extrusion Specs
| Presses | 22 MN & 27 MN (IoT-adapted) |
| Profile Length | 3 m min – 13 m max (9.8 ft – 42.65 ft) |
| Alloys | 6060, 6063, 6463, 6005, 6005A, 6061, 6082, 6101, 1050 |
| Heat Treatment | T4, T5, T6, T66 |
| Products | Standard Profiles, Custom Profiles, Thermal Break Profiles |
CANEX offers both Gravity Die Casting (GC) and Low Pressure Die Casting (LPDC). Our die cast alloys are developed from upcycled extrusion scrap — a sustainable approach that maintains premium material integrity with ±5 °C melt temperature control.
Die Casting Specs
| Methods | Gravity Die Cast (GC) & Low Pressure Die Cast (LPDC) |
| Max Product Size | Up to 1.5 meters |
| Melt Control | ±5 °C temperature precision |
| Surface Roughness | Ra 3.2 – 6.3 μm (125 – 250 μin) |
| Heat Treatment | T4, T5, T6, T7 |
| Raw Material | Upcycled extrusion scrap – zero-waste circular production |
03
Value-Added
Services

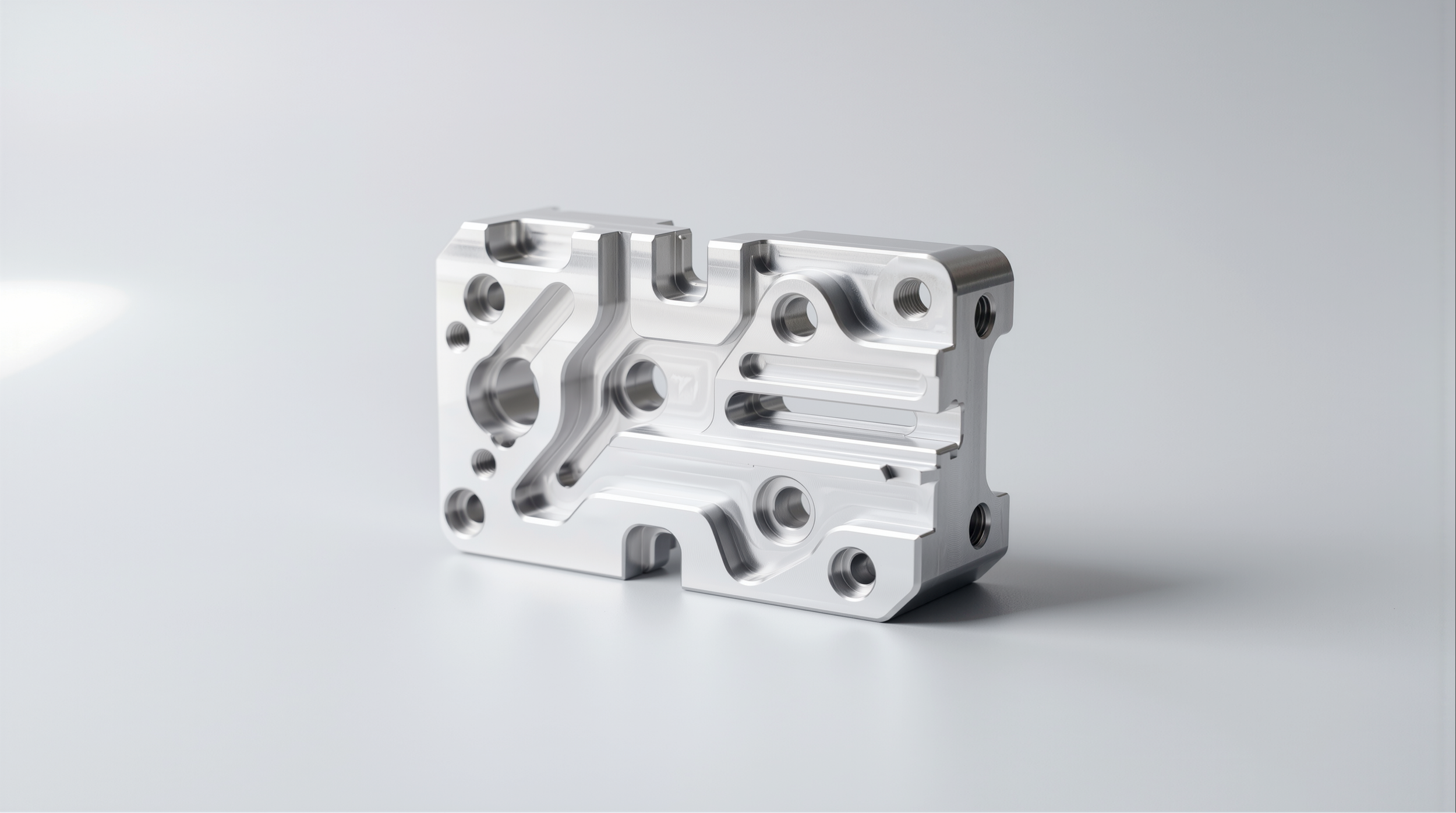

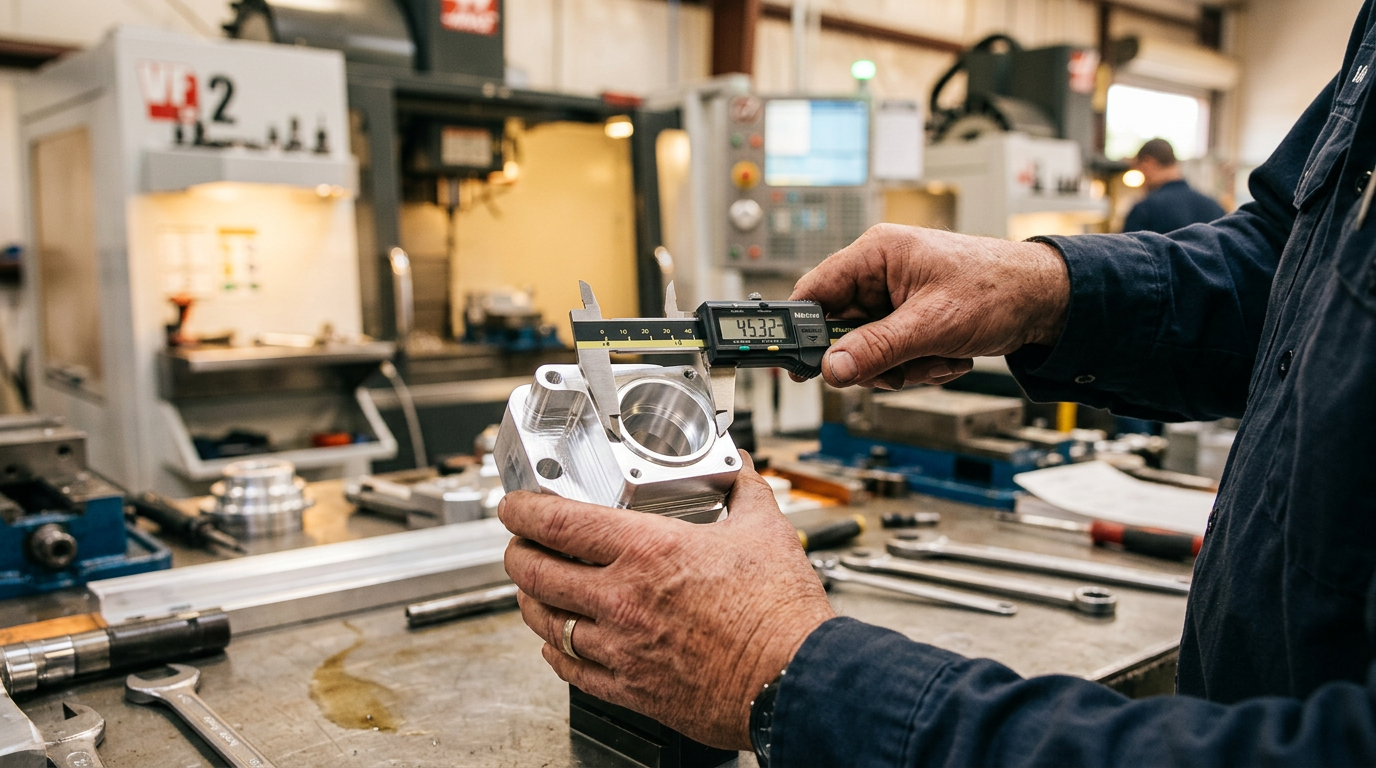

After extrusion or casting, CANEX performs all required machining and value-added operations in-house. This eliminates the need for additional sub-contractors and keeps the entire product under one quality management system.
Whether your part needs simple cutting to length or complex multi-axis CNC machining, we handle it all before the product moves to surface finishing.
04
Surface Finish
CANEX offers six distinct surface finish options — from raw mill finish to premium wood-effect sublimation. Our powder coating line is fully QUALICOAT Seaside and AAMA certified, with a 9-stage chrome-free pretreatment tunnel.

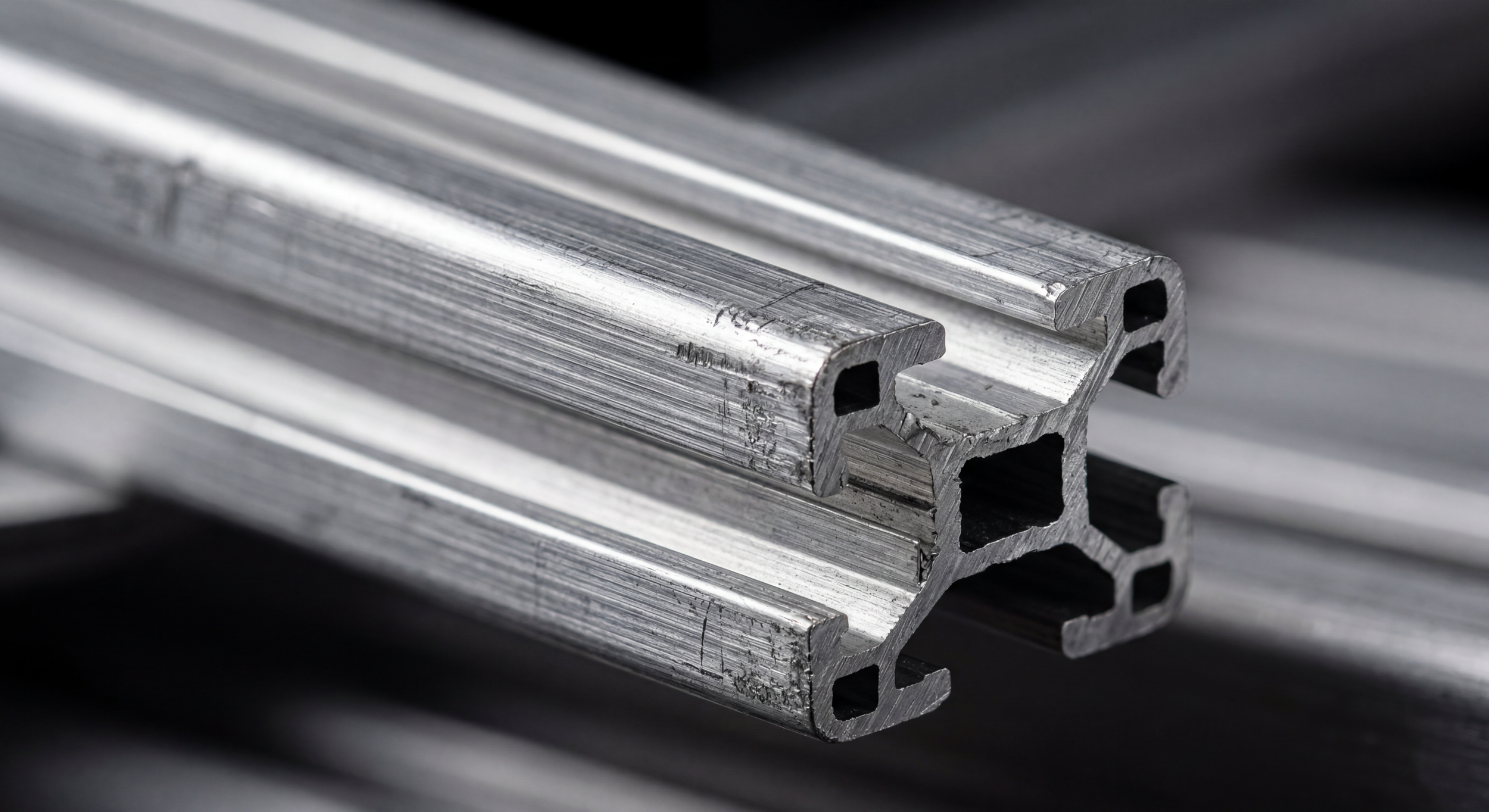

Mill Finish
Raw, uncoated aluminum surface directly from the press or casting die. Suitable for structural or concealed applications.

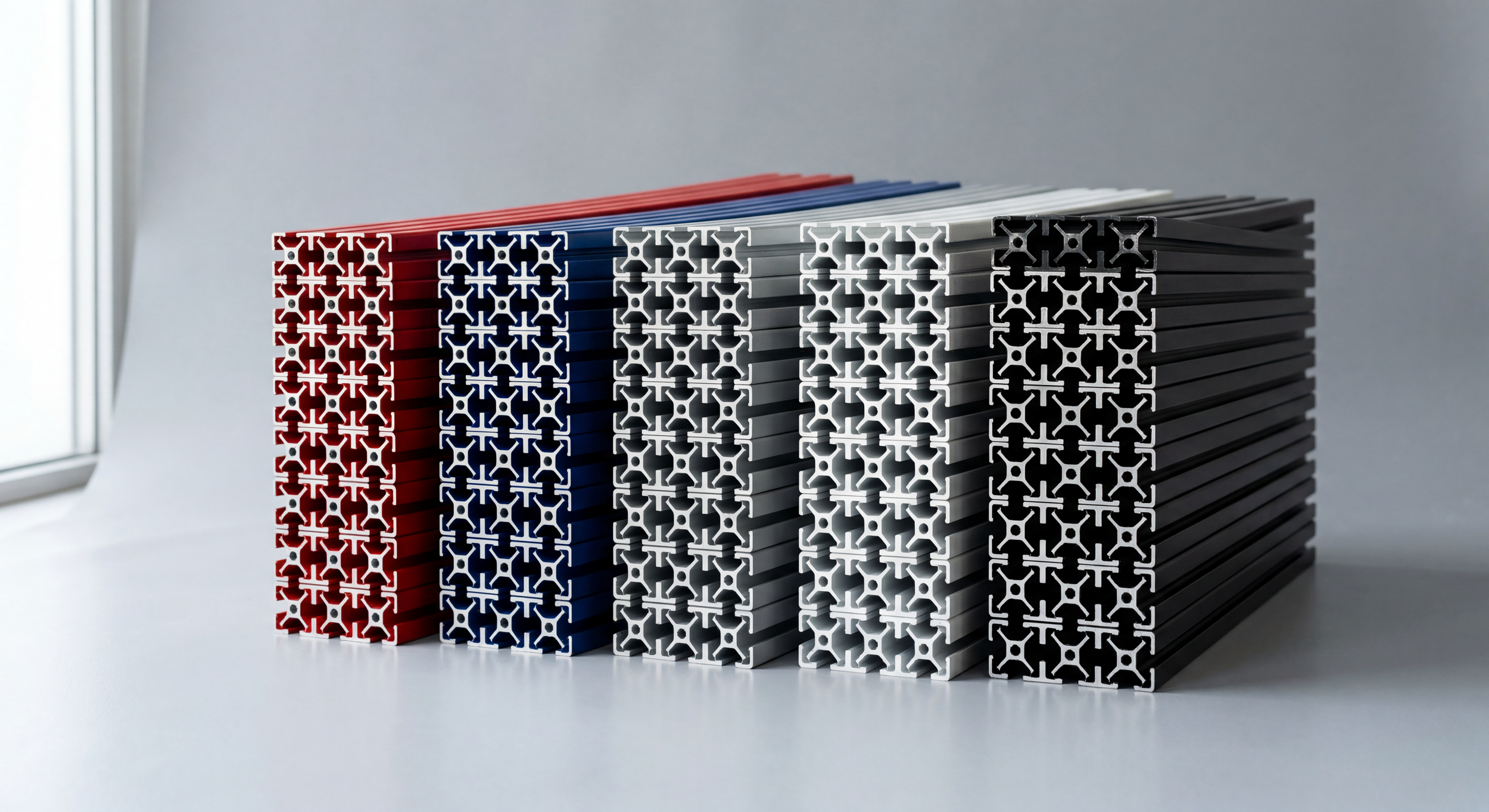

Powder Coating
9-stage chrome-free pretreatment. Three durability levels: Standard, Super Durable, Hyper Durable. QUALICOAT Seaside & AAMA certified.

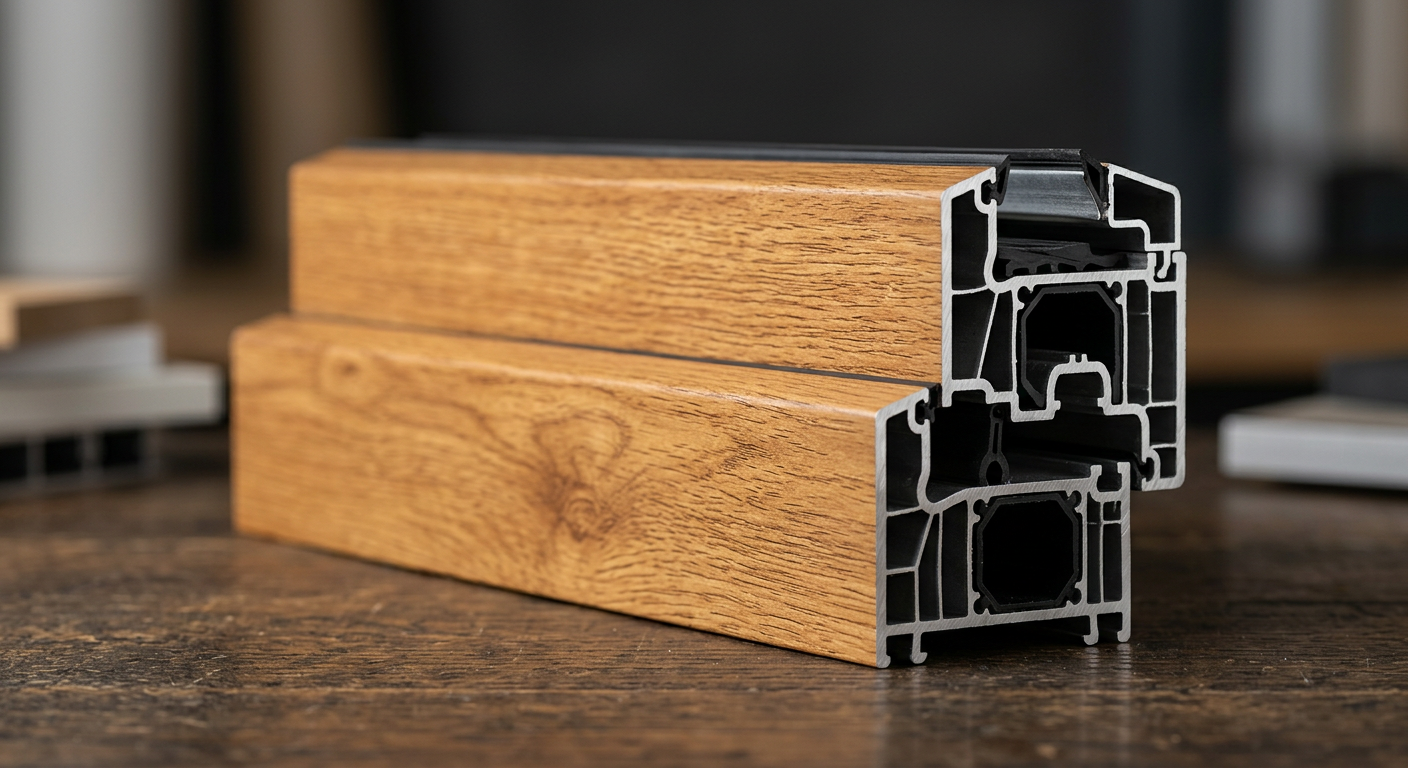

Wood Effect
Film sublimation process transfers realistic wood-grain, stone, or custom patterns onto powder-coated aluminum profiles.

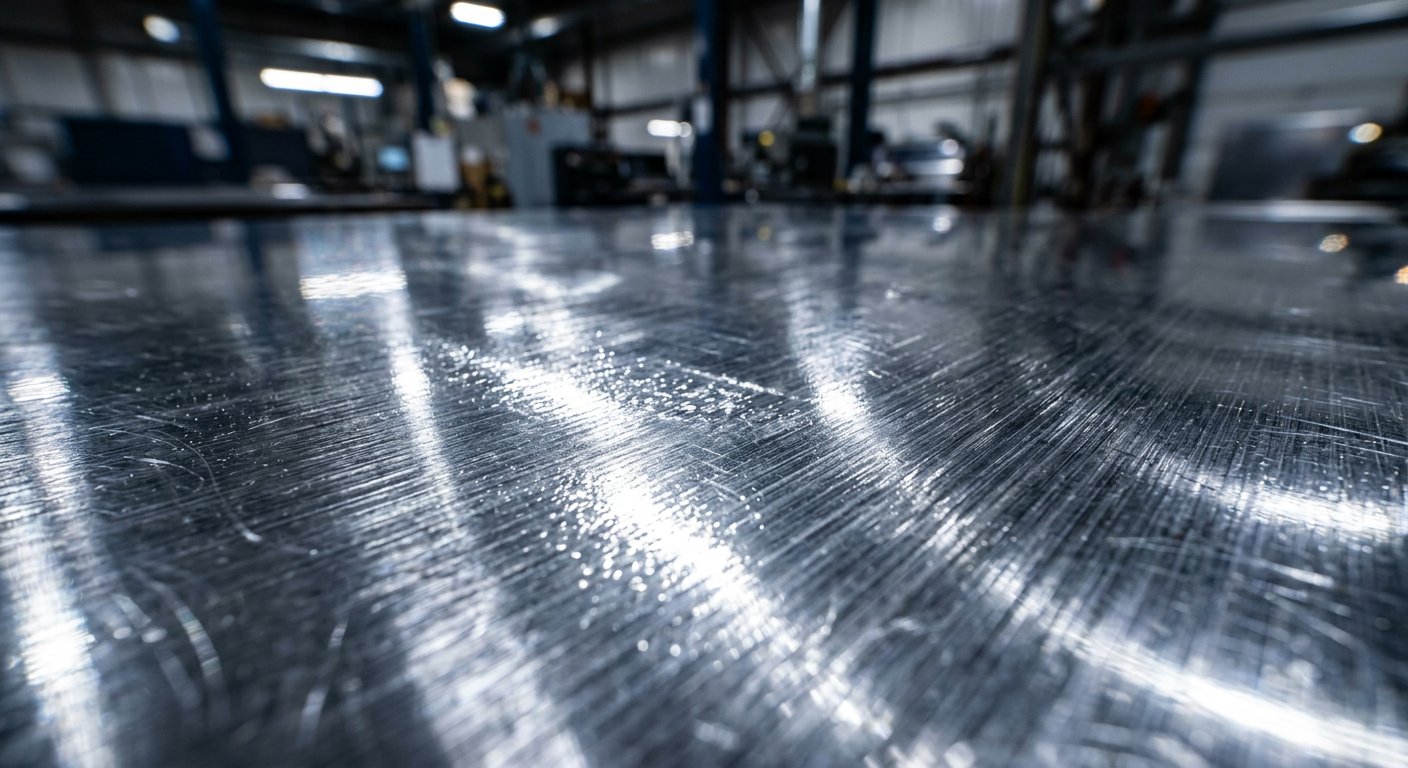

Grinding & Polishing
Achieves surface roughness Ra 0.1–0.2 μm. Used for decorative, mirror, or ultra-smooth functional applications.

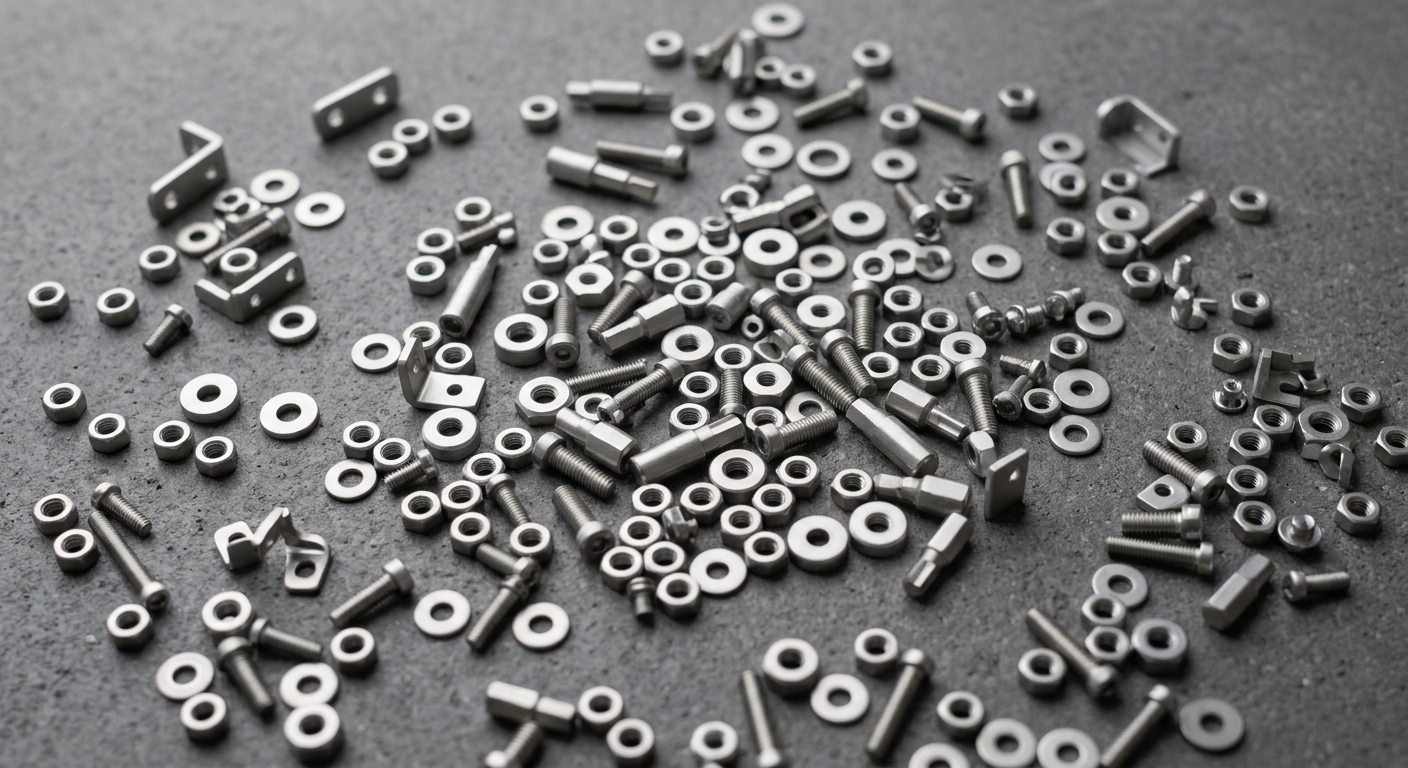

Barrel Finishing
Surface roughness Ra 1.6 μm. Produces a uniform satin-smooth finish ideal for decorative hardware and consumer components.

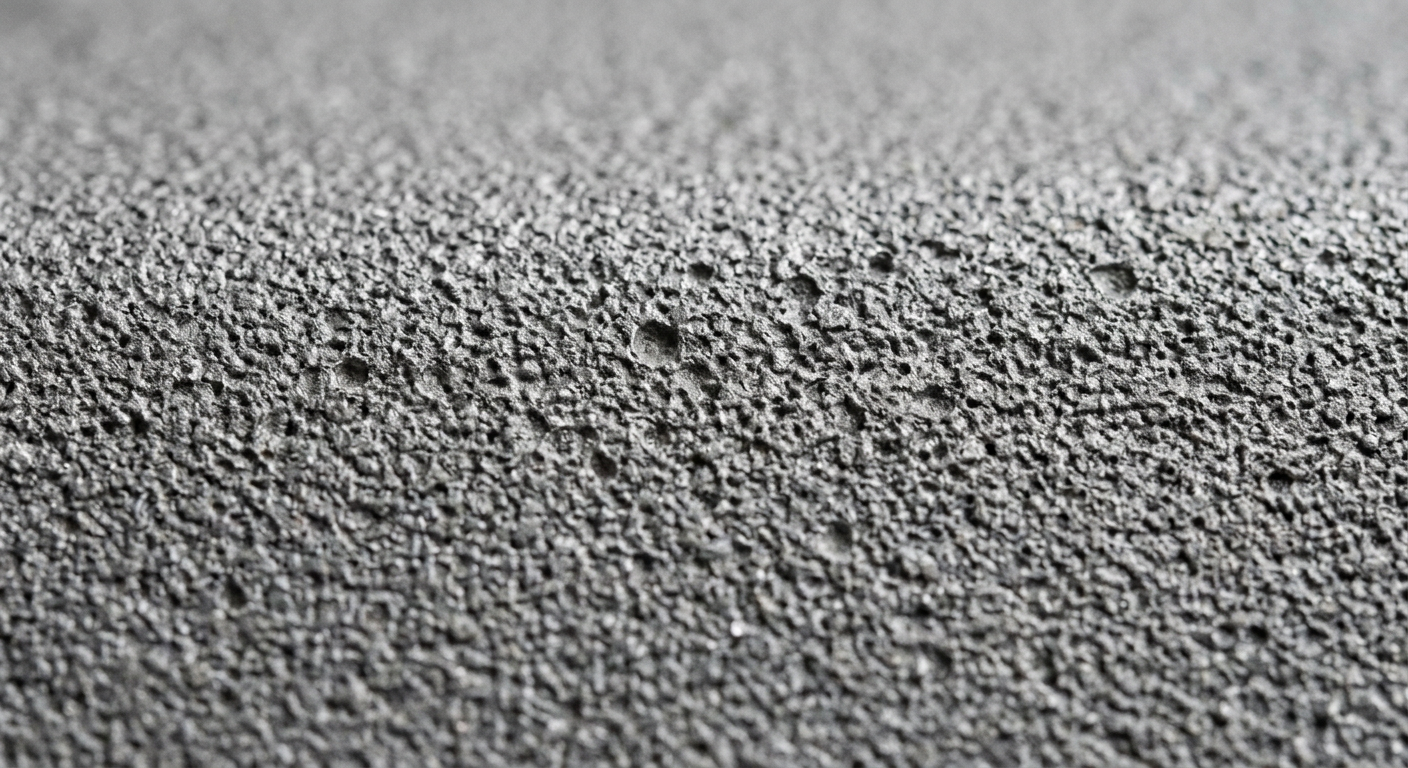

Shot Blasting
Surface roughness Ra 3.2 μm. Creates a uniform matte texture that improves paint adhesion and provides industrial aesthetics.
05
Packaging
CANEX designs and produces custom packaging tailored to your products and end-customer requirements. This includes protective wrapping to prevent surface damage in transit, custom-branded outer boxes for retail-ready products, and pallet configurations optimized for your freight terms.
Packaging is designed around the product — not the other way around. We work with you to specify the protection level, labeling, and presentation that reflects your brand.
Protective Wrapping
Foam, film, and sleeve protection for surface-critical finishes
Custom Branding
Your logo, product codes, and specifications on packaging
Retail-Ready
Presentation packaging designed for shelf or distributor display
Export Palletization
Pallet configs optimized for container loading and your Incoterms
Hover to explore
06
The final stage of the CANEX process is the one most customers don't have to think about. We handle logistics from our factory gate to your facility — all Incoterms from EXW to DDP, including customs clearance, freight forwarding, and insured last-mile delivery.
Our primary export markets are North America (USA, Canada), Europe (EU, UK), and MENA (GCC, North Africa). One purchase order covers the full journey.
Delivery Terms
| Incoterms | EXW, FCA, CPT, CIP, DAP, DPU, DDP — all available |
| Markets | North America · Europe (EU & UK) · MENA (GCC & North Africa) |
| Coverage | Customs clearance, freight forwarding, last-mile delivery |
| Insurance | Insured cargo throughout the delivery chain |
| PO Structure | Single PO covers die making through delivery |
ISO 9001:2015
Quality Management
ISO 45001:2018
Health & Safety
ISO 14001:2015
Environmental
QUALICOAT Seaside
Powder Coating — Top Grade
AAMA
North American Arch. Standard
Full Traceability
Die to Door — Every Batch
Share your specs — alloy, geometry, finish, volume, and destination. We will respond within 48 hours.
