Marine &
Offshore
Marine environments demand the highest corrosion resistance. CANEX produces structural aluminum profiles and die castings backed by QUALICOAT Seaside certification — the highest standard for coastal and salt-spray durability — for vessels, docks, and offshore structures.
the Harshest Environments
Salt spray, humidity, and continuous immersion are the defining challenges of marine environments — and they demand aluminum profiles with the highest corrosion resistance standards available. CANEX is one of a select group of manufacturers holding QUALICOAT Seaside certification, the most stringent standard for aluminum coating in coastal and marine applications.
CANEX supplies structural marine frame profiles, deck and handrail sections, vessel interior profiles, pontoon and dock sections, and offshore equipment housings — in marine-grade alloys with QUALICOAT Seaside powder coating or thick-film anodizing.
Our CE Mark certification ensures CANEX profiles meet EU requirements for marine structural applications on European-flagged vessels and offshore installations.
Used
Boat & Vessel Superstructures
Structural aluminum profiles for commercial ferry superstructures, leisure yacht frames, and naval vessel above-deck structures.

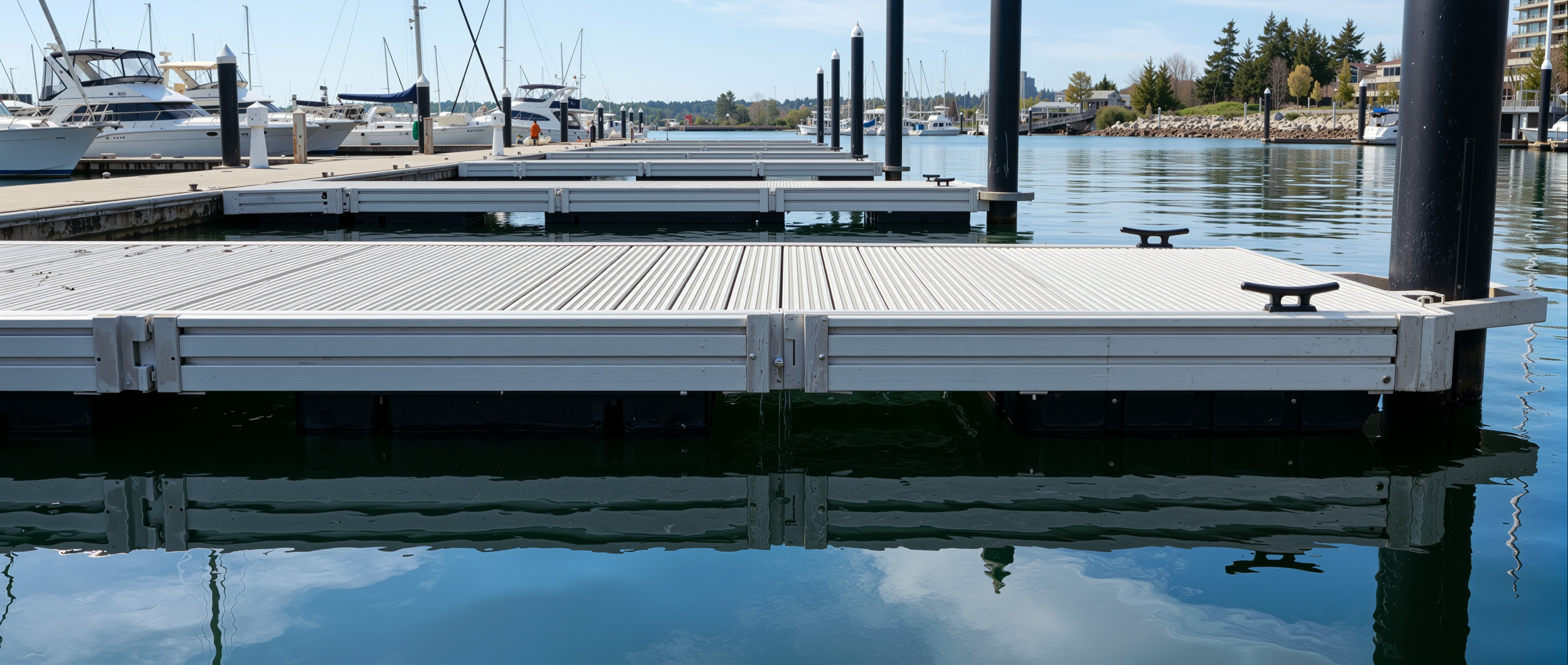

Pontoon Decking Systems
Extruded aluminum decking planks, frame sections, and connector profiles for floating pontoon systems and modular marina structures.

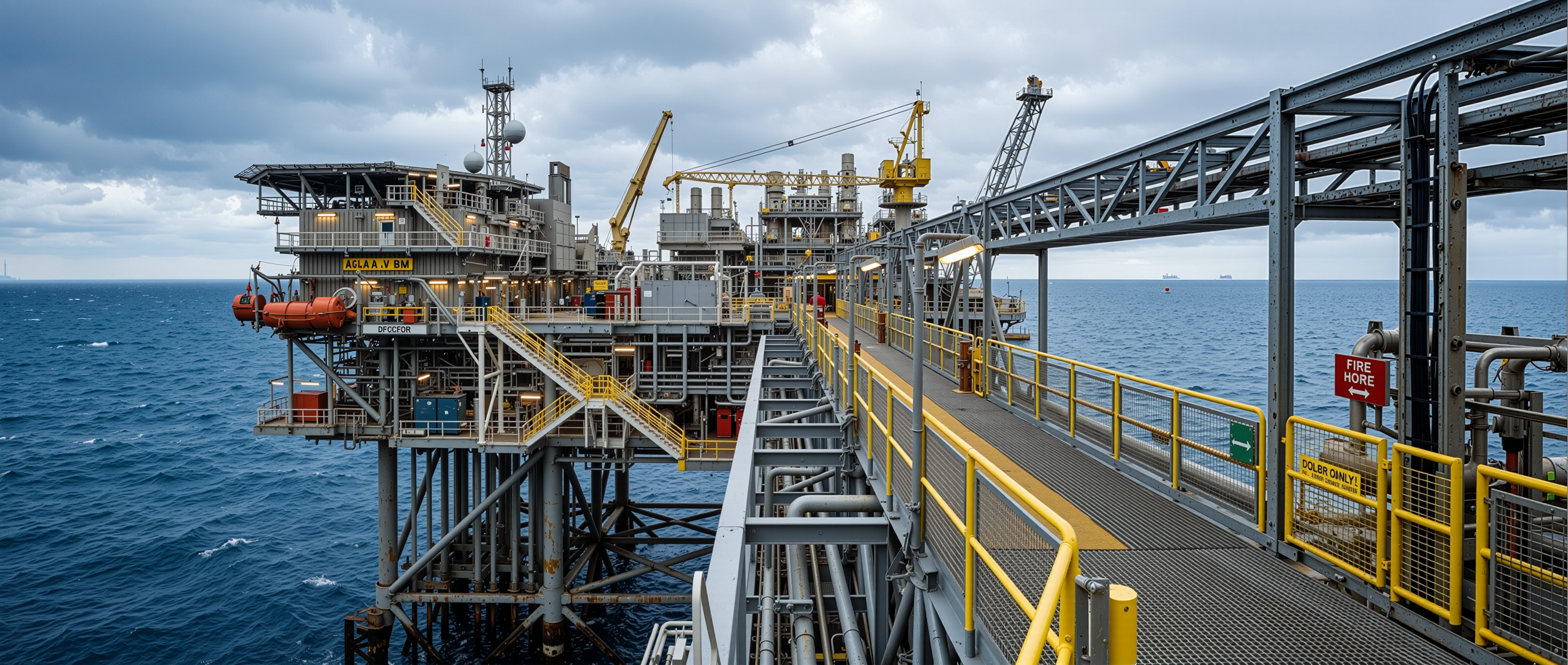

Offshore Platform Structures
Aluminum structural profiles for offshore platform walkways, equipment supports, and personnel protection systems in oil, gas, and renewable energy installations.

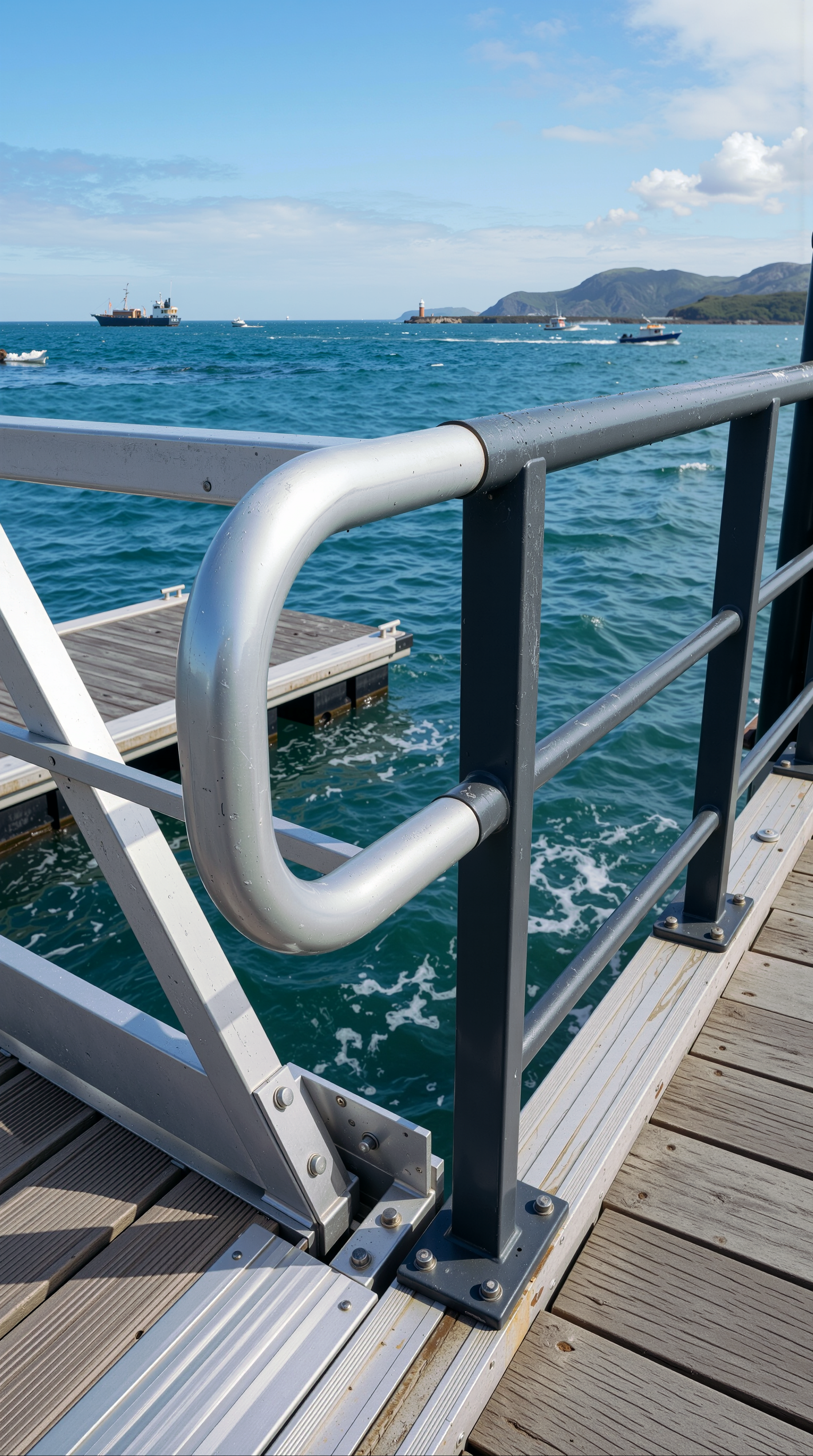

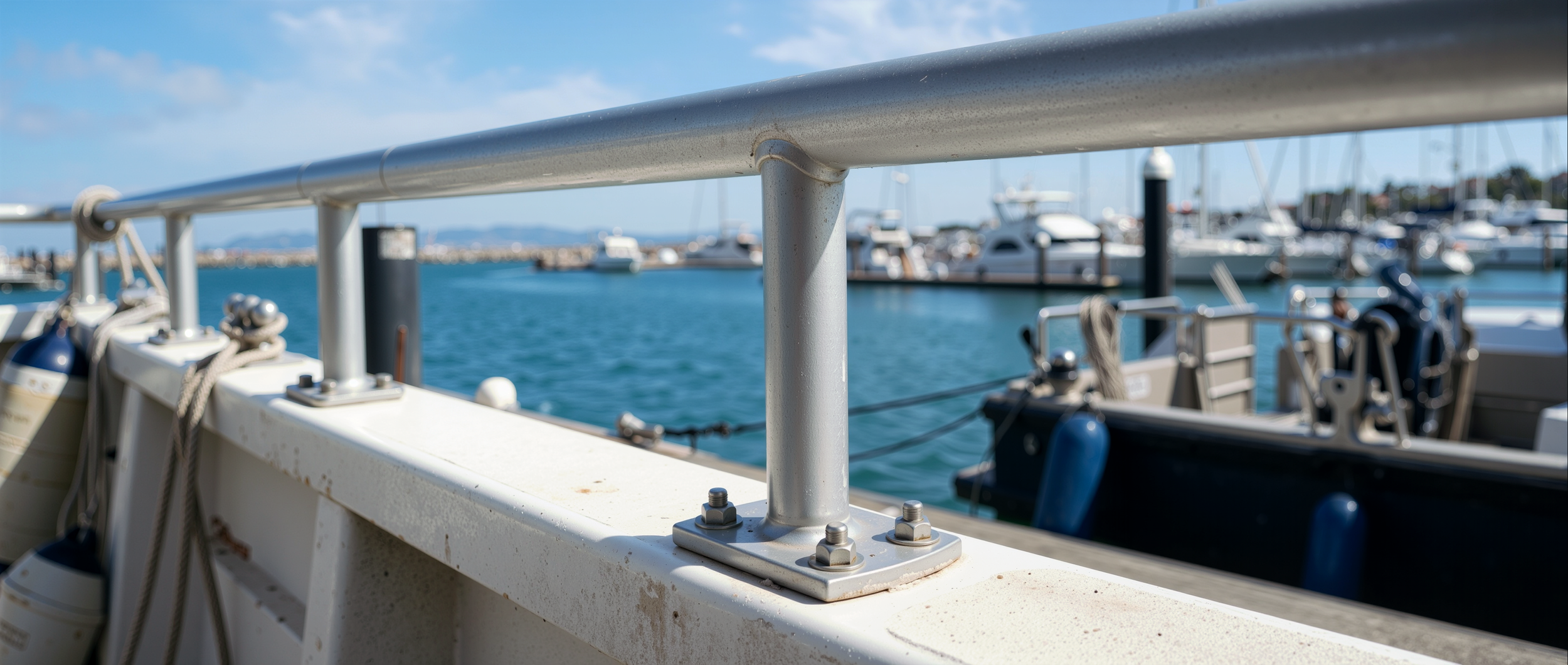

Marine Handrail Systems
Deck handrail profiles, stanchion bases, and railing sections with QUALICOAT Seaside coating for vessels, offshore platforms, and coastal installations.

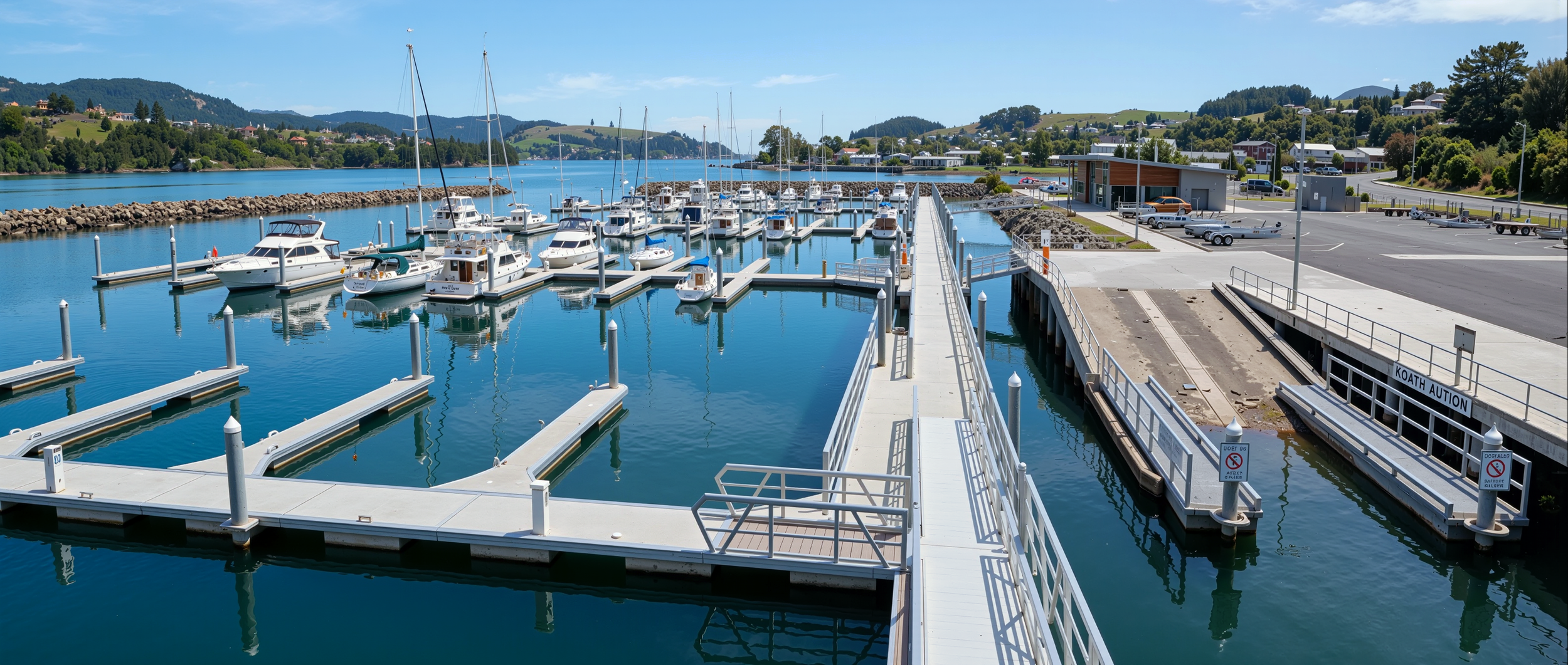

Dock & Marina Infrastructure
Structural aluminum profiles for marina walkways, floating dock systems, boat launch facilities, and coastal recreation infrastructure.

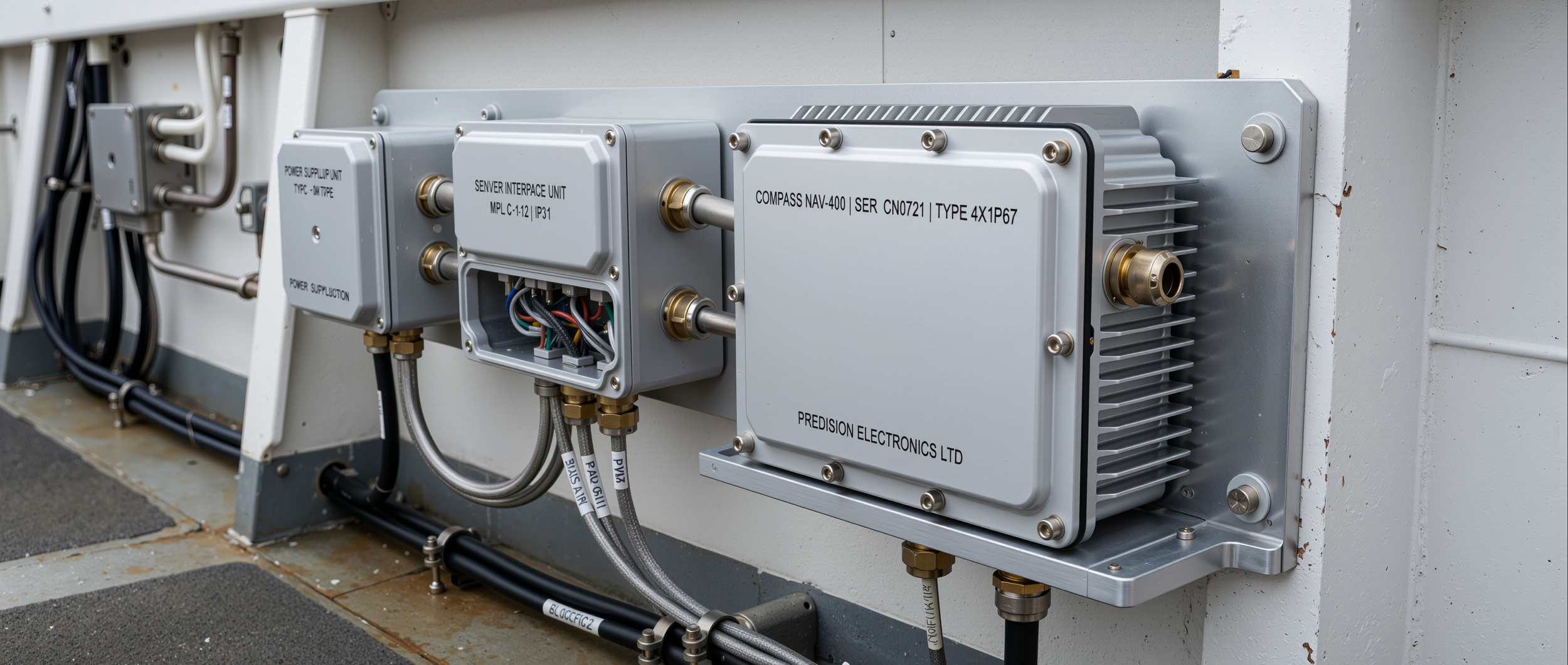

Naval Equipment Housings
Custom extruded enclosures and housings for navigation systems, communications equipment, and deck instrumentation requiring maximum corrosion resistance.
| Parameter | Specification |
| Marine-Grade Alloy | 5083-H111 (marine structural, available on request) |
| Standard Alloys | 6061-T6, 6063-T6 (with appropriate marine surface treatment) |
| Powder Coating | QUALICOAT Seaside certified — highest corrosion resistance level |
| Anodizing | Minimum 25 micron coating thickness for marine applications |
| Corrosion Test | >1000 hours salt spray (ASTM B117 / ISO 9227) — Seaside certification requirement |
| Circumscribed Circle Diameter | Up to 350 mm (standard press capacity) |
| Dimensional Tolerance | EN 755 Class A (standard); Class B on request |
| Certifications | QUALICOAT Seaside, ISO 9001:2015, CE Mark |
| Documentation | Material test certificates, QUALICOAT coating certificates, CE conformity, ISO documentation |
Specifiers Choose
CANEX
QUALICOAT Seaside Certification
CANEX holds the highest QUALICOAT coating level — confirming our coated profiles meet the most demanding corrosion resistance requirements for coastal and marine environments.
Marine Alloy Expertise
We understand the corrosion performance differences between 5083, 6061, and 6063 alloys in marine environments — and advise on the right alloy and finish combination for each application.
Full Documentation for Marine Spec
Material certificates, QUALICOAT coating certificates, CE Mark conformity, and ISO 9001:2015 QMS documentation — the complete package for marine project specification.
CE Mark for EU Offshore Projects
CE-marked profiles confirm EU product standard compliance — required for specification on EU-flagged vessels, European offshore installations, and EU-regulated coastal infrastructure.
Questions
What aluminum alloy does CANEX recommend for marine applications?
For marine structural applications, CANEX recommends 5083-H111 — the internationally recognised marine-grade alloy with exceptional seawater corrosion resistance. For profiles where higher extrudability or surface finish is needed, 6061-T6 and 6063-T6 are used with appropriate QUALICOAT Seaside coating or thick-film anodizing.
Does CANEX hold QUALICOAT Seaside certification for marine profiles?
Yes. CANEX holds QUALICOAT Seaside certification — the highest QUALICOAT level — for our powder coating application. This confirms our coated profiles meet the most demanding corrosion resistance requirements for coastal, marine, and salt-spray environments. Issued by Dedal Attestation & Certification.
What is better for marine profiles — anodizing or powder coating?
Both finishes are used in marine applications. Anodizing (minimum 25 micron for marine) provides excellent corrosion resistance. QUALICOAT Seaside powder coating provides superior colour retention, UV resistance, and impact protection — preferred for visible architectural and deck elements. CANEX offers both options to your specification.
What are the corrosion resistance specifications for CANEX marine profiles?
CANEX marine profiles with QUALICOAT Seaside powder coating achieve over 1000 hours salt spray resistance (ASTM B117 / ISO 9227) — the threshold for Seaside certification. Anodized profiles are supplied to a minimum 25 micron coating thickness for marine applications.
Does CANEX hold CE Mark for marine aluminum profiles?
Yes. CANEX aluminum profiles carry the CE Mark, confirming conformity with applicable EU product standards — required for specification on EU offshore projects, marine infrastructure, and EU-flagged vessel construction.
Can CANEX supply custom marine aluminum profile cross-sections?
Yes. CANEX offers in-house die design and manufacture for custom marine profile cross-sections. Submit your DXF or CAD drawing and our engineers will review for extrudability and deliver first article samples within 4–6 weeks of die approval.
Send us your marine profile requirements or specification drawings and our team will respond within 48 hours.
