Durable, weather-resistant aluminum forms the backbone of modern urban infrastructure — from bridge handrails and walkway systems to road signage, wayfinding networks, and urban furniture installations. CANEX profiles are engineered to last.
Infrastructure & Signage
Infrastructure and public space applications demand aluminum profiles that combine structural reliability, long-term weather resistance, and minimal maintenance over decades of public use. Bridge handrails, elevated walkway systems, road signage structures, and urban street furniture are all critical-function applications where specification quality matters.
CANEX supplies the full range of structural aluminum profiles for infrastructure and signage applications — from 6063-T6 handrail sections for pedestrian bridges to heavy-duty 6082-T6 structural members for load-bearing walkway systems. QUALICOAT Seaside-certified powder coating is available for coastal and marine-adjacent infrastructure, while CE Mark conformity documentation satisfies EU public procurement requirements.
Our ISO 9001:2015 quality system and full documentation package support the rigorous procurement and specification processes of public works authorities, infrastructure contractors, and specifying engineers worldwide.
Infrastructure &
Signage Application
Bridge Handrail Profiles
Structural handrail top sections, post extrusions, and infill panel profiles for pedestrian bridge and elevated walkway handrail systems. 6063-T6 and 6082-T6 alloys; QUALICOAT Seaside coating for coastal locations.
Request Samples →Walkway Deck Sections
Structural deck plank extrusions and sub-frame sections for elevated pedestrian walkway, footbridge, and access platform systems. Anti-slip surfaces available; CE Mark conformity documentation supplied.
Get a Quote →Road Signage Post Profiles
Hollow and solid post extrusions for road, highway, and street signage mounting systems. 6063-T6 and 6061-T6 alloys for impact resistance; powder-coated for all-weather outdoor performance.
Get a Quote →Wayfinding System Frames
Post sections, frame extrusions, and panel holder profiles for wayfinding and directional signage systems in transit hubs, airports, shopping centres, and urban public spaces.
Request Samples →Urban Furniture Extrusions
Structural and decorative aluminum sections for bench frames, bollard extrusions, bicycle shelter profiles, and outdoor urban furniture systems. Anodized or QUALICOAT Seaside powder-coated finishes.
Get a Quote →Traffic Barrier Sections
Structural aluminum sections for traffic safety barrier systems, pedestrian guard rail profiles, and road zone safety barrier extrusions. CE Mark and EN 755 structural tolerances standard.
Submit Your Drawing →Used

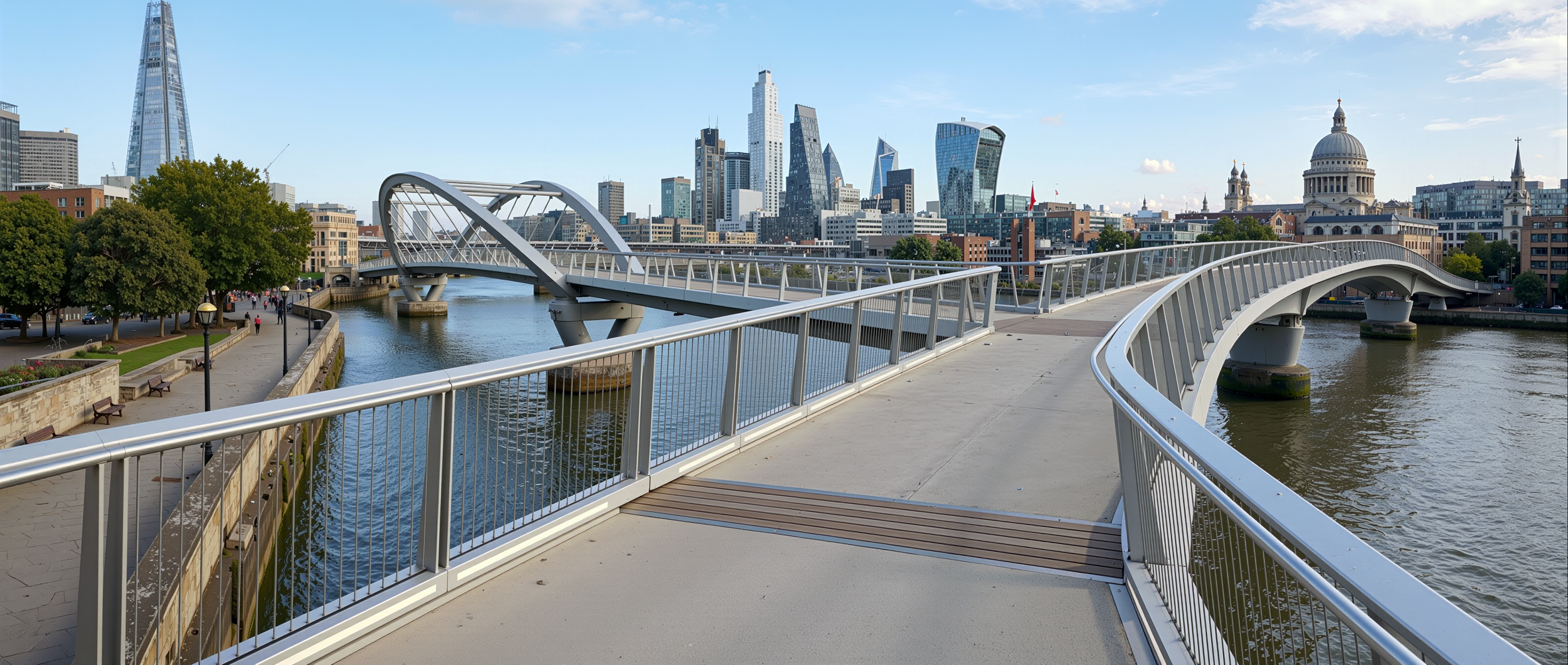

Pedestrian Bridge Handrails
Structural handrail and balustrade systems for pedestrian bridges, overpasses, and elevated walkway structures in urban and coastal environments.

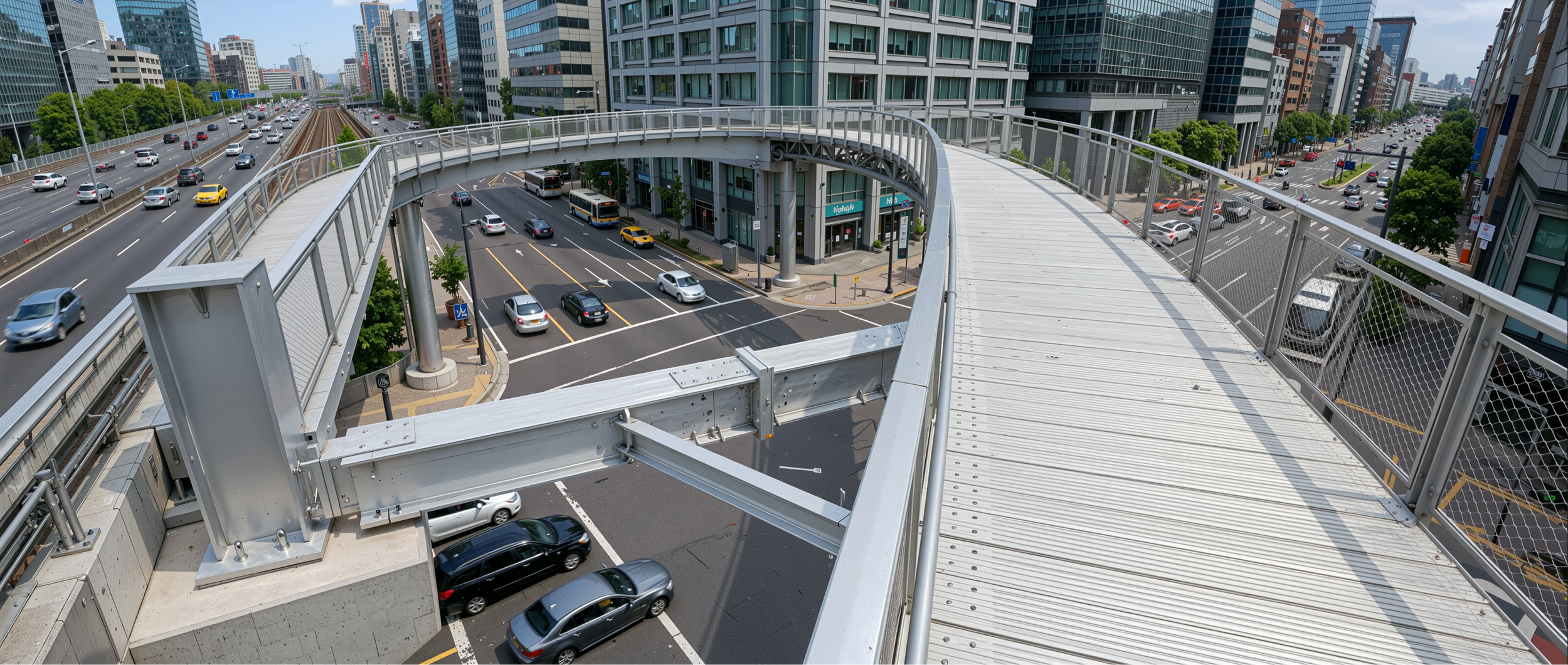

Elevated Walkway Systems
Structural deck and sub-frame extrusions for elevated pedestrian walkways, footbridges, and accessible pathway systems in public infrastructure projects.

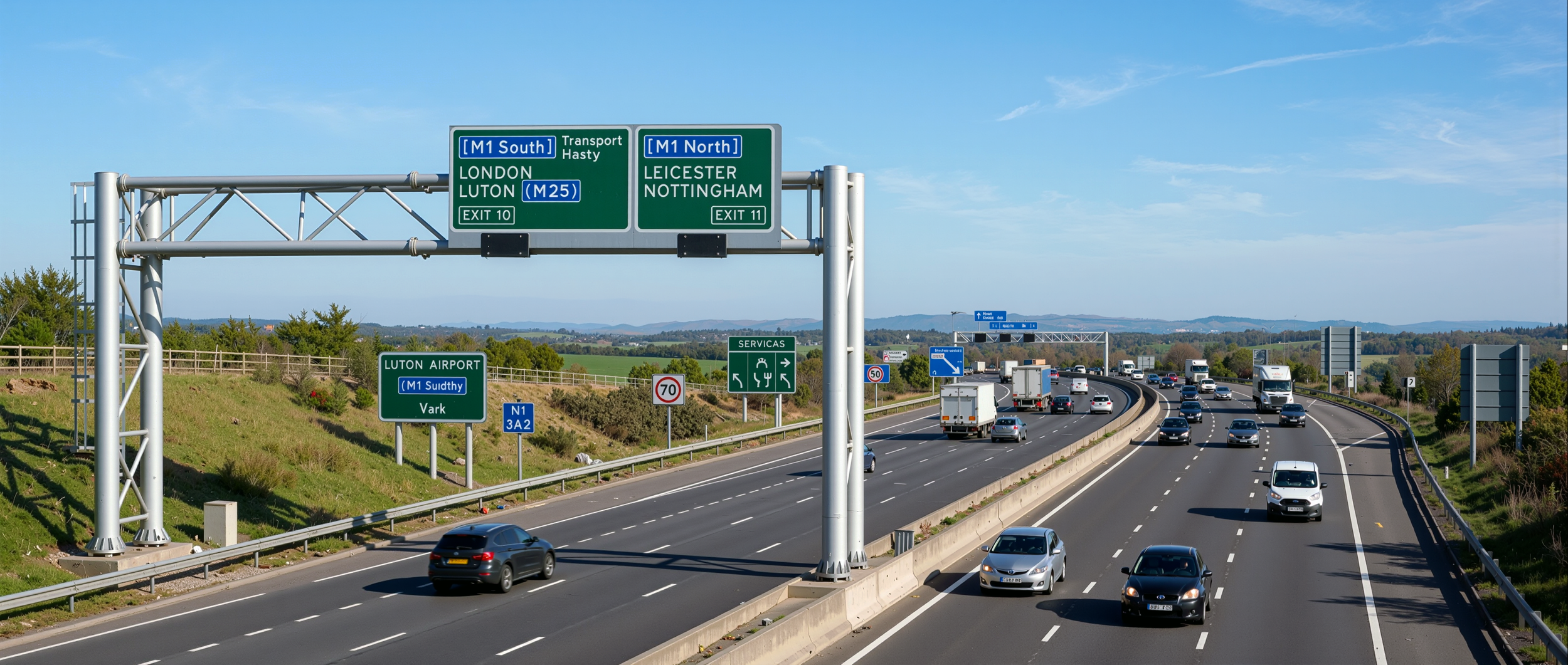

Road & Highway Signage
Post and mounting structure extrusions for road, motorway, and street signage systems in permanent and temporary traffic management applications.
Transit & Airport Wayfinding
Modular frame sections and post profiles for wayfinding and directional signage systems in transit hubs, airports, and public buildings.

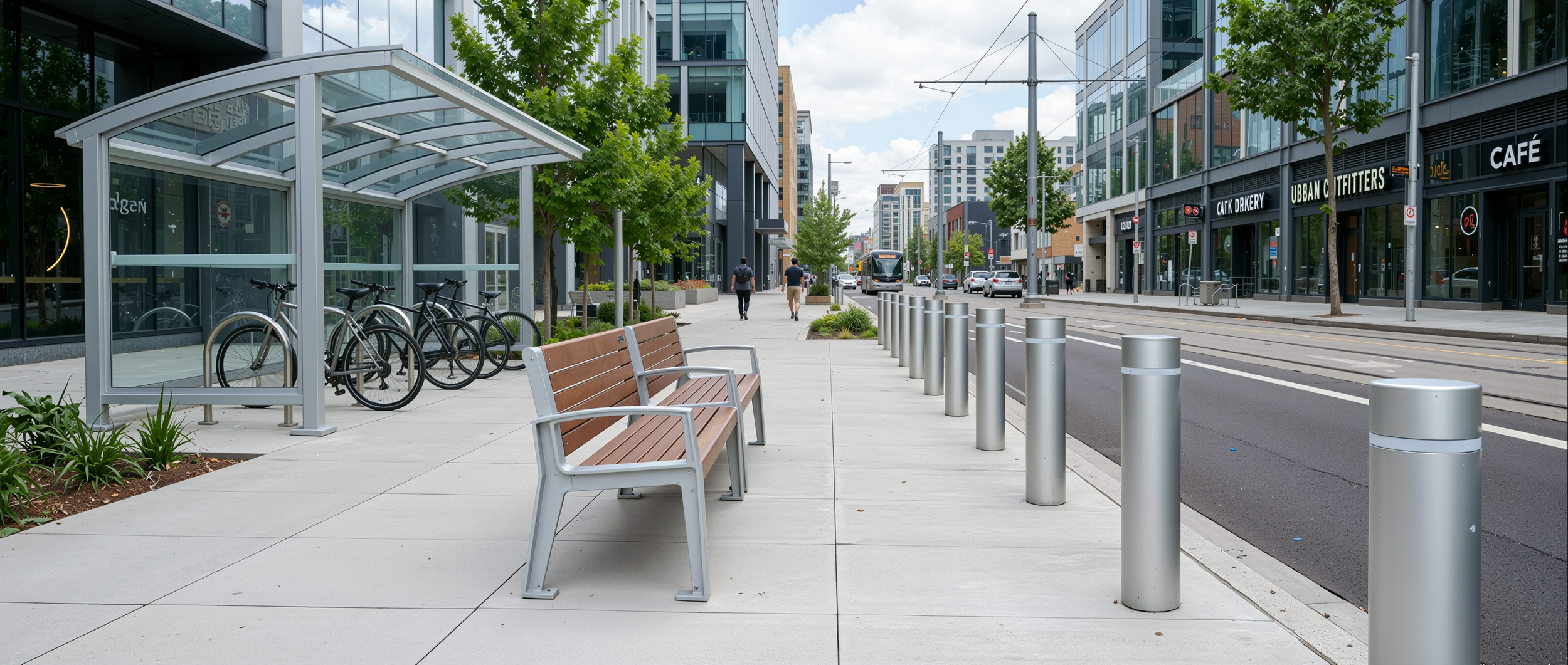

Urban Street Furniture
Structural and decorative aluminum extrusions for bench frames, bollards, bicycle shelters, and public space furniture installations in urban environments.

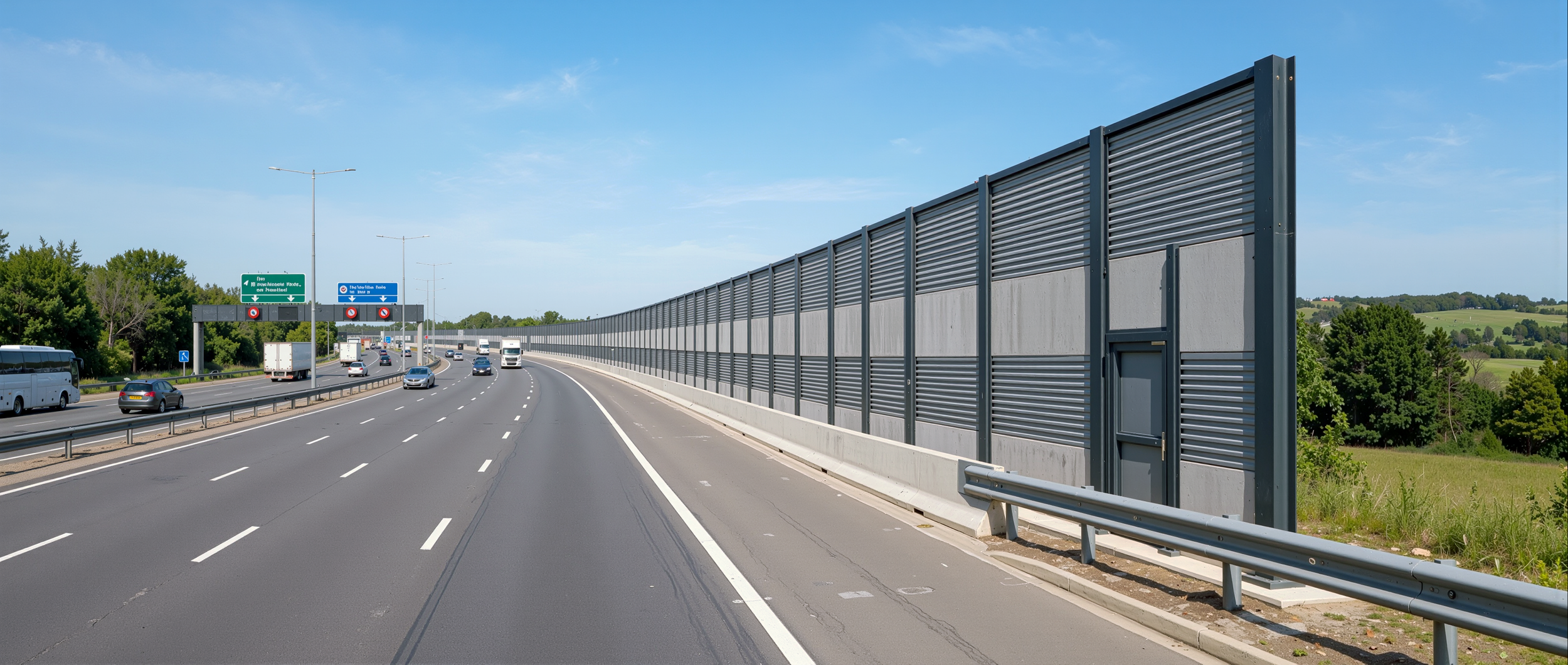

Noise & Safety Barrier Systems
Structural aluminum profiles for noise barrier panel frames, safety barrier systems, and road-side acoustic screen structures.
| Parameter | Specification |
| Primary Alloys | 6063-T6 (standard structural); 6061-T6 (medium structural); 6082-T6 (heavy structural) |
| Anodizing | Class 20 (20 μm) and Class 25 (25 μm outdoor grade) available |
| Powder Coating | QUALICOAT Seaside certified for coastal and marine-adjacent locations; full RAL range |
| Powder Coat Thickness | 60–80 μm standard; 80–100 μm for demanding outdoor environments |
| Dimensional Tolerance | EN 755 structural tolerances (Class A & B) |
| CE Mark | CE marking conformity to applicable EU structural aluminum product standards |
| Wall Thickness | From 2.0 mm to 25+ mm depending on structural application |
| CCD Range | Up to 350 mm (standard press capacity) |
| Length | Standard 6 m; custom lengths to 7 m on request |
| Certifications | ISO 9001:2015, QUALICOAT Seaside, CE Mark; full material test certificates supplied |
Contractors Choose
CANEX
Structural Alloy Range
6063-T6, 6061-T6, and 6082-T6 alloys — covering the full range of structural load requirements from pedestrian handrails to heavy-load walkway deck systems.
QUALICOAT Seaside for Coastal
QUALICOAT Seaside — the highest QUALICOAT level — qualifying our profiles for coastal and marine-adjacent infrastructure where salt spray resistance is critical.
CE Mark for EU Projects
CE Mark conformity documentation satisfies EU public infrastructure procurement requirements — required for structural aluminum on EU-funded bridge, walkway, and road projects.
ISO 9001 Documentation
Full quality documentation package for public works procurement — ISO 9001:2015, CE Mark, material test certificates, and EN 755 dimensional conformity reports.
Signage Questions
What aluminum profiles does CANEX supply for bridge handrails?
CANEX supplies structural aluminum handrail sections, post extrusions, and infill panel profiles for pedestrian bridge and elevated walkway handrail systems. 6063-T6 and 6082-T6 alloys are used for structural load requirements; QUALICOAT Seaside powder coating is available for coastal bridge installations.
Is QUALICOAT certification available for outdoor infrastructure profiles?
Yes. CANEX holds QUALICOAT Seaside certification — the highest QUALICOAT level — for our powder coating application. This qualifies our coated profiles for coastal infrastructure environments where salt spray resistance is critical. QUALICOAT Seaside is specified for bridge handrails, coastal walkways, and harbour infrastructure projects.
Does CANEX hold CE Mark certification for infrastructure aluminum?
Yes. CANEX aluminum profiles carry the CE Mark, confirming conformity with applicable EU product directives and structural aluminum standards. CE Mark is required for structural aluminum profiles used in EU public infrastructure projects — bridges, walkways, road signage structures, and urban furniture.
What structural alloys does CANEX supply for walkway systems?
CANEX supplies 6063-T6, 6061-T6, and 6082-T6 aluminum alloys for structural walkway applications. 6082-T6 provides the highest tensile strength of the 6xxx series — typically specified for heavy-load walkway deck sections, structural bridge members, and load-bearing urban furniture. All are available with QUALICOAT Seaside powder coating.
What aluminum extrusions are used for wayfinding signage systems?
CANEX supplies post sections, frame extrusions, and panel holder profiles for wayfinding and directional signage systems in transit hubs, airports, shopping centres, and public spaces. Anodized and powder-coated finishes available; tight tolerances for modular signage system assembly.
What is better for outdoor infrastructure — anodizing or powder coating?
Both are suitable for outdoor infrastructure, but with different performance characteristics. Anodizing (Class 25, 25 μm outdoor grade) provides a hard, integral oxide layer with very good corrosion resistance. QUALICOAT Seaside powder coating provides the highest weather and salt-spray resistance and is preferred for coastal and marine infrastructure. For the most demanding coastal environments, QUALICOAT Seaside powder coating is the recognised specification.
Send us your structural requirements or cross-section drawings and our team will respond within 48 hours.
