Custom Profiles
Any cross-section. Any alloy. Any length. We design and manufacture the die in-house — then extrude your custom profile to exact specification.
Your Design.
Our Die.

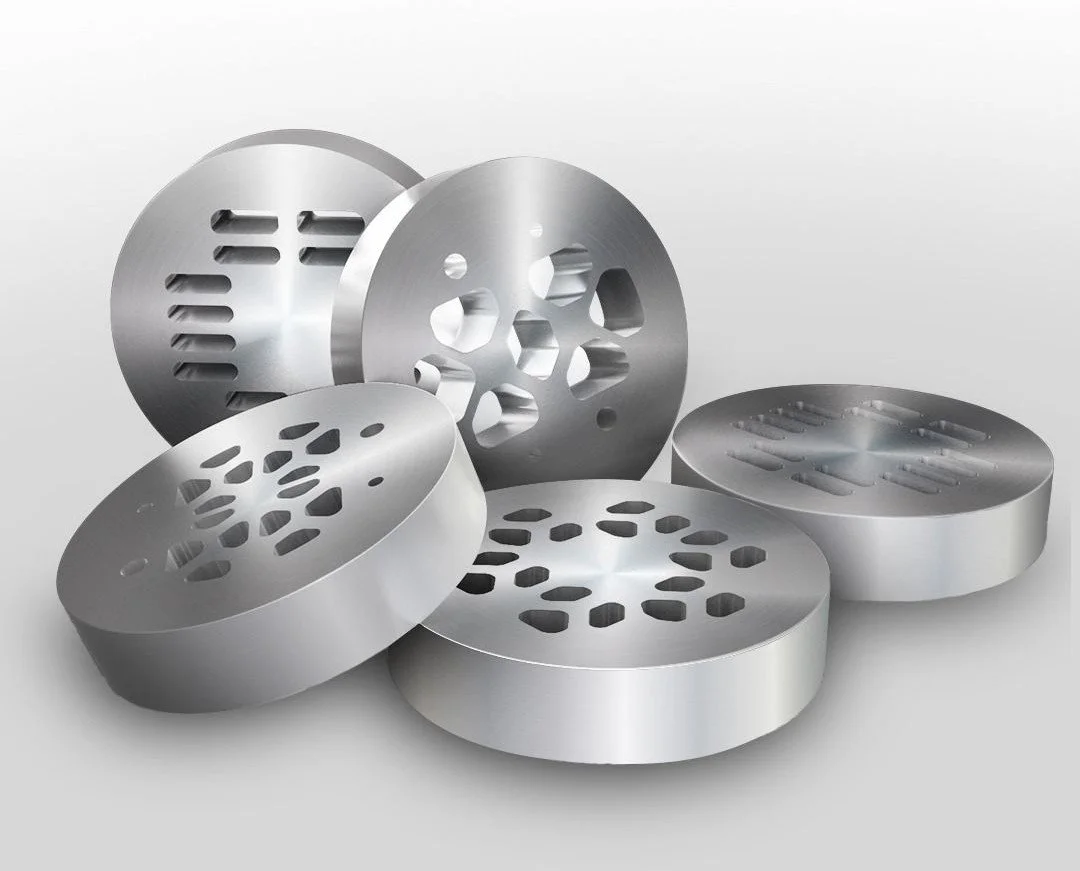

CANEX designs and manufactures every extrusion die in-house using advanced simulation software. Send us a DXF, DWG, or even a hand sketch — our engineering team will evaluate the geometry, run simulation analysis, and design a die optimized for dimensional accuracy and extrusion performance.
This fully integrated capability means we can extrude virtually any cross-section you need — solid, hollow, semi-hollow — without relying on external toolmakers. Shorter lead times, full IP control, and a single point of accountability from drawing to delivery.
Die precision is achieved to ±0.001 mm. Typical die fabrication lead time is 7–14 working days. After press trials and dimensional sign-off, your die enters production and we can run repeat orders with no additional tooling cost.
The Custom Process
Every custom profile follows a structured engineering workflow — ensuring that what we press matches what you designed, every time.
01
DXF / Drawing
Submission
02
Die Design &
Simulation
03
In-House
Die Making
04
Press Trial &
Sign-Off
05
Full Production
Run
06
Finishing &
Delivery
Process Flow Visual
Infographic or photo sequence of die design → CNC machining → press trial → finished profile
1200 × 400 px recommended

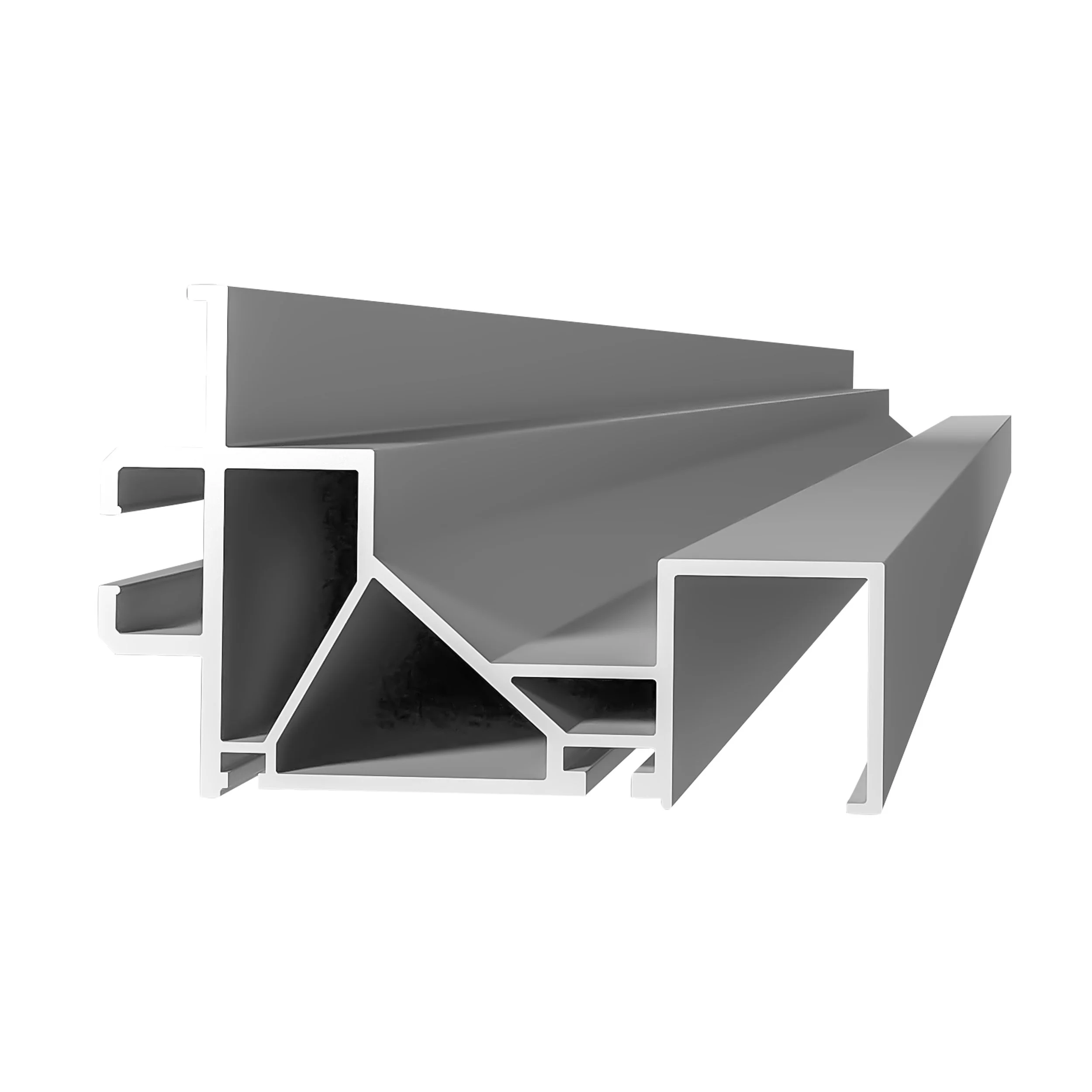

Custom Profile
Specifications
CANEX's custom extrusion capability is supported by in-house die design, simulation, and manufacturing — with no external toolmakers in the chain.
| Die Precision | Up to ±0.001 mm |
| Die Types | Solid, hollow, semi-hollow |
| Presses | 22 MN & 27 MN (IoT-adapted) |
| Profile Lengths | 3 m minimum – 13 m maximum |
| Alloys Available | 6060, 6063, 6463, 6005, 6005A, 6061, 6082, 6101, 1050 |
| Heat Treatment | T4, T5, T6, T66 |
| Die Lead Time | 7–14 working days (typical) |
| Minimum Order | Discuss with our engineering team |
| Dimensional Tolerance | As per EN 755 / ASTM B221; tighter on request |
| Die Ownership | Full die ownership retained by customer after first order |
Why In-House Die Making Matters
When the toolmaker is also the extruder, every step of the process is optimized together — not handed off across two separate companies with separate priorities.
In-House Die Making
We design and machine every die in our own tool room. No external vendors, no communication delays, no markup — and full control over die quality and timing.
Simulation Before Cutting
Before any steel is cut, we run die-flow simulation software to predict metal flow, pressure, and dimensional output. This reduces first-trial failures and costly re-cuts.
Full Die Ownership
After your first production order, you own the die. It is stored in our die library, maintained at no extra cost, and used exclusively for your orders. Full intellectual property protection.
Custom Profiles In Use
Custom extrusion profiles are specified wherever standard shapes cannot meet the functional or aesthetic requirements. These are the most common application categories for CANEX custom profiles.
Curtain Wall Systems
Specialized Structural Sections
Branded Architectural Elements
Proprietary Product Designs
OEM Components
Heat Sink Profiles
Transport & Automotive Sections
Renewable Energy Structures
Get a quote for your specific requirements. Our engineering team responds within 48 hours.
